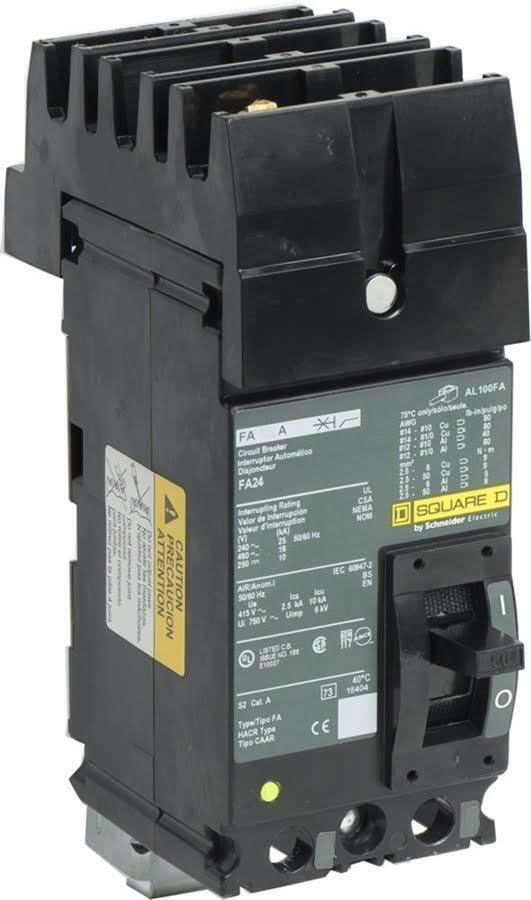

FA24100BC Square D Circuit Breaker

FA24100BC - Schneider Electric Molded Case
Circuit Breakers

Part Number:
FA24100BC

Manufacturer:
Schneider Square D Breakers

Family:
I-Line

Pole:
2

Amp
100

Volt:
480

Phase:
1

Category:

Molded Case Breakers / 2-Pole

Connection:
I-Line Style Plug-In

Type:
F Frame

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
18kA@480V

Dimensions (HxWxD):
4.13 x 3 x 6.4

Weight:
5 lb

FA24100BC - Schneider Electric Molded Case
Circuit Breakers
The Square D I-Line Type FA molded case circuit breaker, designated as FA32025, is a 3-pole, 3-phase breaker with a 25A capacity at 240V and a standard interrupting rating of 10kA@240V. It features an ABC phase connection, a 40°C temperature rating, I-Line Style Plug-In configuration, and operates on Thermal Magnetic principles.
