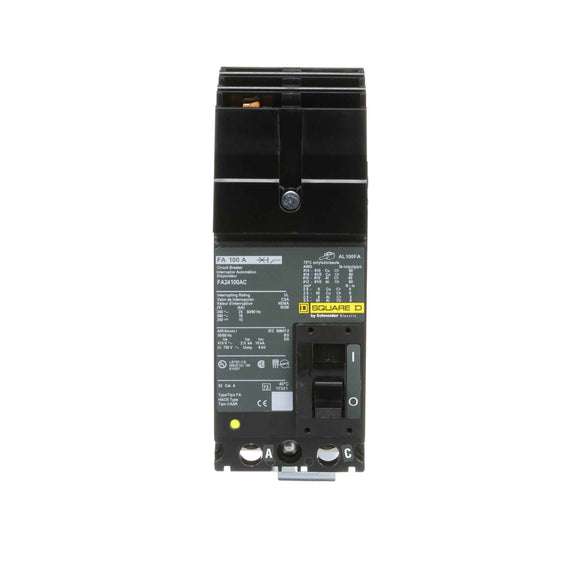

FA24100AC Square D Circuit Breaker

Part Number:FA24100AC

Manufacturer:Schneider Square D Breakers

Family:I-Line

Pole:2

Amp100

Volt:480

Phase:1

Category:

Molded Case Breakers / 2-Pole

Connection:I-Line Style Plug-In

Type:F Frame

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):4.13 x 3 x 6.4

Weight:5 lb

FA24100AC - Schneider Electric Molded Case Circuit BreakersAnother variant of the Square D I-Line Type FA molded case circuit breaker, with a rating of 100A at 480V and a standard interrupting rating of 18kA@480V, is designed for single-phase applications. It features a 40°C temperature rating, I-Line Style Plug-In configuration, and operates with B & C phase circuit arrangement, utilizing Thermal Magnetic principles.
