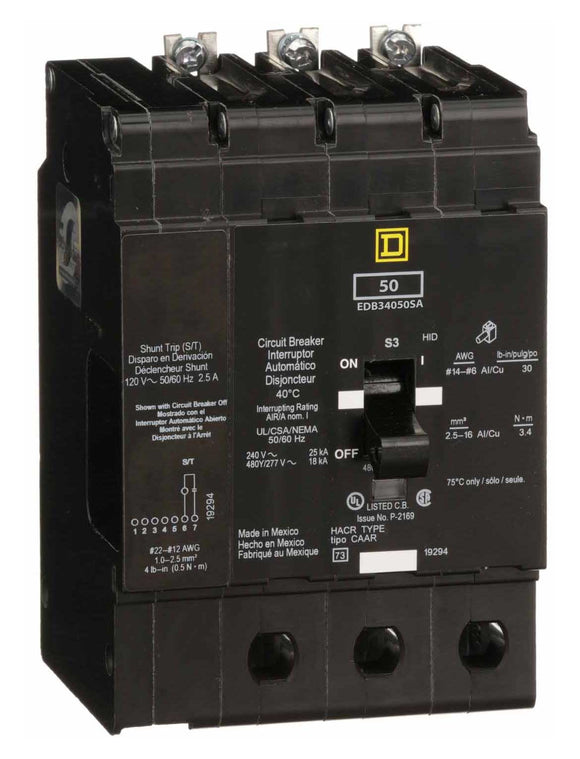

EDB34050SA Square D Circuit Breaker
EDB34050SA - Square D Molded Case Circuit Breakers
Part Number:
EDB34050SA
Manufacturer:
Schneider Electric / Square D
Family:
EDB Series
Pole:
3
Amp
50
Volt:
480
Phase:
3
Category:
Molded Case / 3-Pole
Connection:
Bolt-On
Type:
EDB
Functions:
LI - Long-Time and Instantaneous
Protection:
Thermal Magnetic
AIC Ratings:
18kA@480V
Dimensions (HxWxD):
5.66x 3.92x 4.05
Weight:
4 lbs
Additional Details
Protection Type:
Short-Circuit / Overload
Module Type:
E-Frame
Trip Unit Technology:
Thermal-magnetic
Line Rated Current:
50 Amp
Maximum Operating Voltage:
480Y/277 V AC
Mounting Mode:
Bolt-on
Breaking Capacity Code
D
Electrical Connection:
Lugs aluminium
AWG Gauge:
AWG 12...AWG 2/0 aluminium / AWG 14...AWG 2/0 copper
EDB34050SA - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, EDB Series, type EDB, 3P, 3PH, 50A, 18kA@480V, complete with 120V shunt trip, standard interrupting capacity, bolt-on, thermal magnetic
