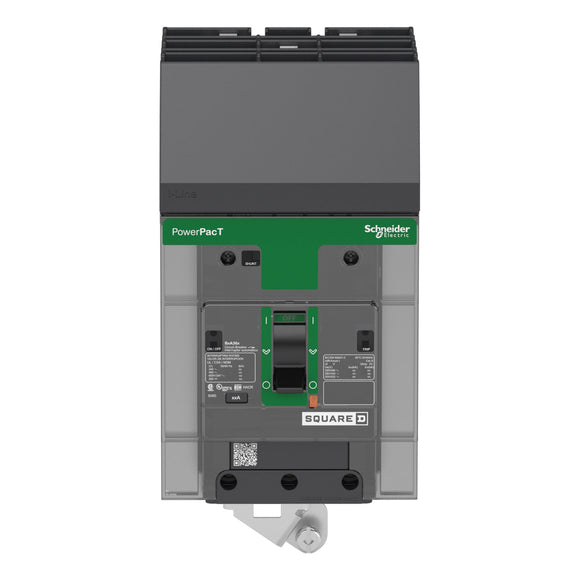

BGA36100 Square D Circuit Breaker

BGA36100 - Square D Molded Case Circuit Breakers

Part Number:
BGA36100

Manufacturer:
Square D

Family:
Powerpact

Pole:
3

Amp
100

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
BGA

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
35kA@480V

Dimensions (HxWxD):
5.39x 3.19x 3.50

Weight:
2.90 lbs

Additional Details

Trip Unit Technology:
Thermal-magnetic

Line Rated Current:
100 Amp

Mounting Mode:
I-Line

Breaking Capacity Code:
G

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating:
80%

Control Type:
Toggle

AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper

BGA36100 - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type BGA, 3PH, 3P, 600Y/347Vac, 100A, 35kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers
