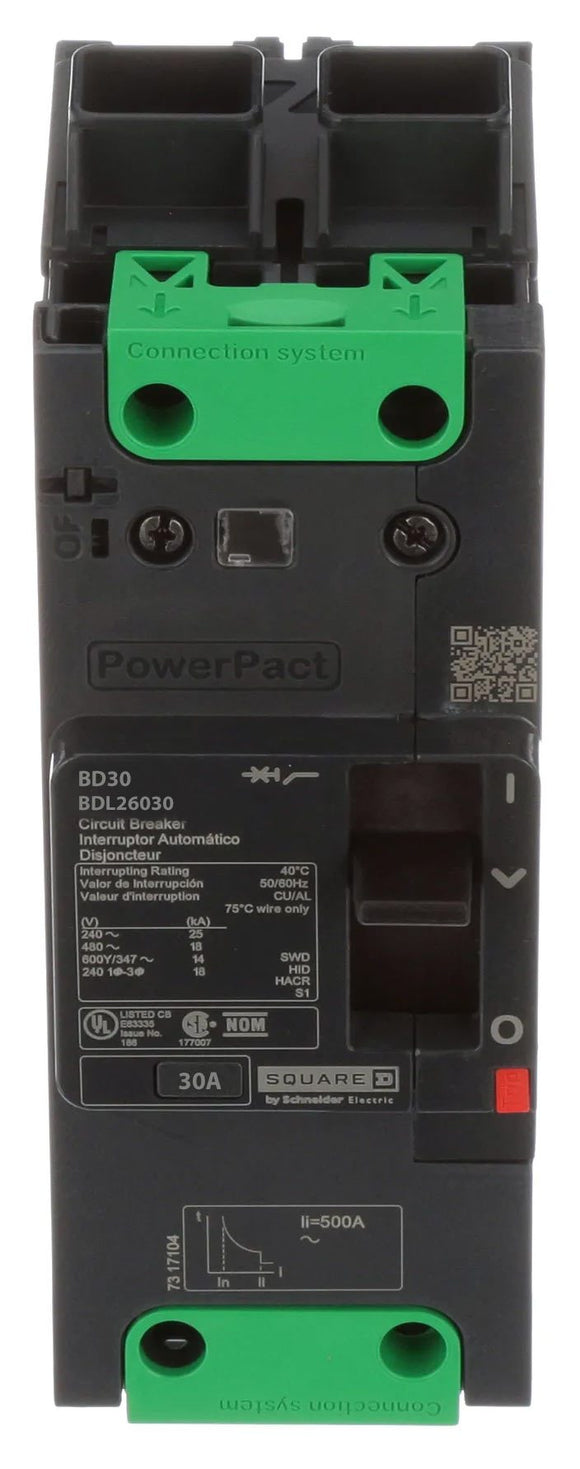

BDL26030 Square D Circuit Breaker

Part Number:BDL26030

Manufacturer:Square D

Family:Powerpact

Pole:2

Amp30

Volt:600

Phase:1

Category:

Molded Case / 2-Pole

Connection:Feed-Thru

Type:BDL

Functions:LI - Long-Time and Instantaneous

Protection:Thermal Magnetic

AIC Ratings:18kA@480V

Dimensions (HxWxD):5.39x 2.13x 3.15

Weight:1.70 lbs

Additional Details

Trip Unit Technology:Thermal-magnetic

Line Rated Current:30 Amp

Mounting Mode:Clip-on 35 x 15 mm symmetrical DIN rail)By screws plate)

Breaking Capacity CodeD

Electrical Connection:Everlink lug line / Everlink lug load

Continuous Current Rating80%

Control Type:Toggle

AWG Gauge:AWG 6...AWG 2/0 fine stranded aluminium/copperAWG 14...AWG 3/0 rigid or stranded aluminium/copper

BDL26030 - Square D Molded Case Circuit BreakersSquare D / Schneider Electric, Powerpact, type BDL, 1PH, 2P, 600Y/347Vac, 20A, 18kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.
