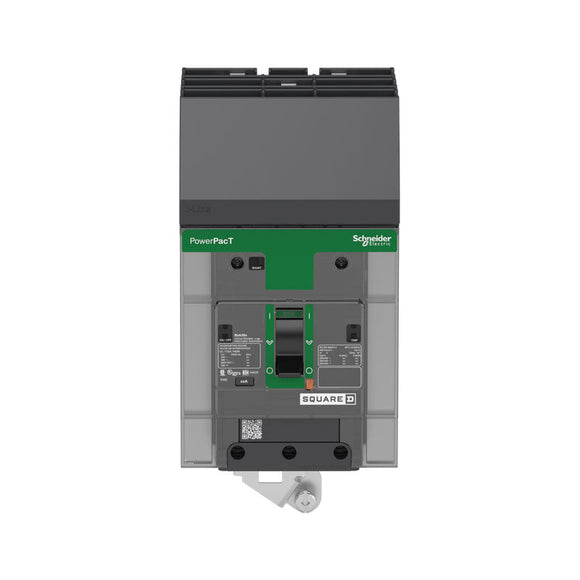

BDA36125 Square D Circuit Breaker

BDA36125 - Square D Molded Case Circuit Breakers

Part Number:
BDA36125

Manufacturer:
Square D

Family:
Powerpact

Pole:
3

Amp
125

Volt:
600

Phase:
3

Category:

Molded Case / 3-Pole

Connection:
I-Line Style Plug-In

Type:
BDA

Functions:
LI - Long-Time and Instantaneous

Protection:
Thermal Magnetic

AIC Ratings:
18kA@480V

Dimensions (HxWxD):
5.39x 3.19x 3.50

Additional Details

Trip Unit Technology:
Thermal-magnetic

Line Rated Current:
125 Amp

Mounting Mode:
I-Line

Breaking Capacity Code
D

Electrical Connection:
I-Line connection line / Lugs load

Continuous Current Rating
80%

Control Type:
Toggle

AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper

Weight:
2.90 lbs

BDA36125 - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 125A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip
